# K3RN3LCTF 2021 - Beecryption

Cryptography – 500 pts (2 solves) – Chall author: Polymero (me)

I was watching the bees and it seemed as if they were trying to tell me something… Have I finally gone crazy?!?

Encrypted Flag:

b8961e85e54e357cf1bb18550e9d397cb6e522e386a837a970c71e02a353eddb9117713e60aa8f764e4525f86898e379fce195437ec59202a5b715334b3295b9f9c9280b2de048183f1a9581860b852167102c1c4ec2897b59e360b5ba37d90b60f23b2ad47c04782a6be3bf


Files: beecryption.py, subround.png

This challenge was part of our very first CTF, K3RN3LCTF 2021.

## Exploration

Talking bees? Yeah this chall author has gone absolutely mad for sure. Well, let us take a look at what he cooked up for us and yes I am talking about myself here…

class BeeHive:
""" Surrounding their beehive, the bees can feast on six flower fields with six flowers each. """
def __init__(self, key):
""" Initialise the bee colony. """
self.fields = self.plant_flowers(key)
self.nectar = None
self.collect()

def plant_flowers(self, key):
""" Plant flowers around the beehive. """
try:
if type(key) != bytes:
key = bytes.fromhex(key)
return [FlowerField(key[i:i+6]) for i in range(0,36,6)]
except:
raise ValueError('Invalid Key!')

def collect(self):
""" Collect nectar from the closest flowers. """
A,B,C,D,E,F = [i.flowers for i in self.fields]
self.nectar = [A[2]^B[4],B[3]^C[5],C[4]^D[0],D[5]^E[1],E[0]^F[2],F[1]^A[3]]

...

class FlowerField:
""" A nice field perfectly suited for a total of six flowers. """
def __init__(self, flowers):
""" Initialise the flower field. """
self.flowers = [i for i in flowers]

def rotate(self):
""" Crop-rotation is important! """
self.flowers = [self.flowers[-1]] + self.flowers[:-1]


The FlowerField class will contain a total of 6 flowers and has a rotate() method that will simply permutate this array by one to the right. The BeeHive class will initialise 6 FlowerFields for a total of 36 key bytes. The nectar attribute can be updated using the collect() method, which takes a specific 12 bytes from the full state and XORs them into 6 bytes which will be set to the nectar attribute. Let continue our journey by taking a look at the actual encryption functionality.

class BeeHive:

...

def stream(self, n=1):
""" Produce the honey... I mean keystream! """
buf = []
# Go through n rounds
for i in range(n):
# Go through 6 sub-rounds
for field in self.fields:
field.rotate()
self.cross_breed()
self.collect()
self.pollinate()
# Collect nectar
self.collect()
buf += self.nectar
return buf

def encrypt(self, msg):
beeline = self.stream(n = (len(msg) + 5) // 6)
cip = bytes([beeline[i] ^ msg[i] for i in range(len(msg))])
return cip

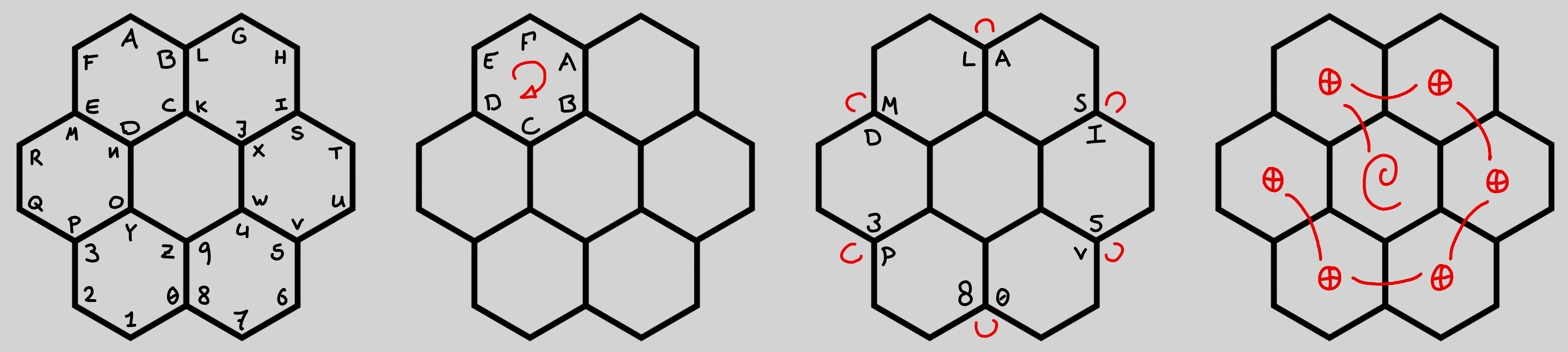

Seems like a standard stream cipher set-up, where the keystream is generated 6 bytes at a time (using the collect() method) after having gone through 6 sub-rounds. To help visualise these sub-rounds we are also given an image that shows the elements of a single round, FlowerField rotation, byte-swapping, and internal XORing.

We have seen that the FlowerField rotate() method just permutates its 6-byte state by one. Let us take a look at the cross_breed() and pollinate() methods.

class BeeHive:

...

def cross_breed(self):
""" Cross-breed the outermost bordering flowers. """
def swap_petals(F1, F2, i1, i2):
""" Swap the petals of two flowers. """
F1.flowers[i1], F2.flowers[i2] = F2.flowers[i2], F1.flowers[i1]
A,B,C,D,E,F = self.fields
swap_petals(A,B,1,5)
swap_petals(B,C,2,0)
swap_petals(C,D,3,1)
swap_petals(D,E,4,2)
swap_petals(E,F,5,3)
swap_petals(F,A,0,4)

def pollinate(self):
""" Have the bees pollinate their flower fields (in order). """
bees = [i for i in self.nectar]
A,B,C,D,E,F = self.fields
for i in range(6):
bees = [[A,B,C,D,E,F][i].flowers[k] ^ bees[k] for k in range(6)]
self.fields[i].flowers = bees


Turns out the cross_breed() method indeed swaps a specific set of bytes within the internal 36-byte state. The pollinate() method takes the 6-byte ‘nectar’ output and XORs it with the FlowerFields one by one, changing itself as well.

Finally, we get a bit of known plaintext before the encrypted flag.

some_text = b'Bees make honey, but they also made the Bee Movie... flag{_REDACTED_}'
flag = BeeHive(os.urandom(36).hex()).encrypt(some_text).hex()


This all seems complicated, how do we even go about attacking this?..

## Exploitation

The important point here to note is that all transformations in this cipher are linear in GF(2), i.e. transpositions and XORs only. Therefore all elements of the cipher can be represented by matrix operations. By converting the given cipher code into matrix operations on a state vector one can recover the initial state (=key) after a certain number of outputs.

There are more compact/faster ways of solving this (using symbolic math f.i.), but tackling the cipher elements algebraically one-by-one provides more insight into algebraic attacks.

# SAGE

# Just for easier visual debugging :)
def bitstate_to_bytes(state):
return bytes([int(''.join(str(i) for i in state.column(0))[j:j+8],2) for j in range(0,state.dimensions()[0],8)])

# TIME TO BUILD OUR MATRICES!

# FlowerField.rotate() matrices
I_48x48 = Matrix(GF(2), [[0]*i + [1] + [0]*(48-i-1) for i in range(48)])
R_48x48 = Matrix(GF(2), list(I_48x48)[-8:] + list(I_48x48)[:-8])
ROT_MATs = [block_diagonal_matrix(*([I_48x48]*i + [R_48x48] + [I_48x48]*(6-i-1)), subdivide=False) for i in range(6)]

# BeeHive.cross-breed() matrix
SWAP_MAT = identity_matrix(GF(2), 288)
for k in [((0*6+1)*8,(1*6+5)*8), ((1*6+2)*8,(2*6+0)*8), ((2*6+3)*8,(3*6+1)*8),
((3*6+4)*8,(4*6+2)*8), ((4*6+5)*8,(5*6+3)*8), ((5*6+0)*8,(0*6+4)*8)]:
i,j = k
for n in range(8):
SWAP_MAT.swap_rows(i+n, j+n)

# BeeHive.collect() output matrix
GROW_MAT = []
for k in [((0*6+2)*8,(1*6+4)*8), ((1*6+3)*8,(2*6+5)*8), ((2*6+4)*8,(3*6+0)*8),
((3*6+5)*8,(4*6+1)*8), ((4*6+0)*8,(5*6+2)*8), ((5*6+1)*8,(0*6+3)*8)]:
i,j = k
for n in range(8):
GROW_MAT += [[0]*(min(i,j)+n) + [1] + [0]*(max(i,j)-min(i,j)-1) + [1] + [0]*(288-max(i,j)-1-n)]
GROW_MAT = Matrix(GF(2), GROW_MAT)

# BeeHive.pollination() matrix
BEES_MAT = block_matrix(GF(2),[[I_48x48,0,0,0,0,0],[I_48x48,I_48x48,0,0,0,0],[I_48x48,I_48x48,I_48x48,0,0,0],[I_48x48,I_48x48,I_48x48,I_48x48,0,0],
[I_48x48,I_48x48,I_48x48,I_48x48,I_48x48,0],[I_48x48,I_48x48,I_48x48,I_48x48,I_48x48,I_48x48]], subdivide=False)
POLL_MAT = GROW_MAT
for _ in range(5):
POLL_MAT = POLL_MAT.stack(GROW_MAT)
POLL_MAT += BEES_MAT

# Create a round matrix that represents the state update for a single round (not the output)
ROUND_MAT = identity_matrix(GF(2), 288)
for i in range(6):
ROUND_MAT = POLL_MAT * SWAP_MAT * ROT_MATs[i] * ROUND_MAT

# Let's check for the smallest number of rounds necessary for a matrix with a rank of 288
# Remember that the output is modified by GROW_MAT
OUT_MAT = GROW_MAT * ROUND_MAT
i = 2
while OUT_MAT.rank() < 288:
OUT_MAT = OUT_MAT.stack(GROW_MAT * ROUND_MAT^i)
i += 1

# Get rid of some unnecessary rows (just to get the absolute minimum information we need)
k = 288
while Matrix(GF(2), list(OUT_MAT)[:k]).rank() < 288:
k += 1
MINREC_MAT = Matrix(GF(2), list(OUT_MAT)[:k])

# Turns out we need 38 bytes of known keystream in order to recover the internal state, that is not very secure :S

# TIME TO TEST IT OUT!

# Let's create an encryption
s    = b'Hello, this is a custom 36-byte key!'
text = b'Bees make honey, but they also made the Bee Movie... flag{_REDACTED_}'
hc   = HoneyComb(s.hex())
flag = hc.encrypt(text)

# Time to recover our key!
rec_keystream = bytes([text[i] ^^ flag[i] for i in range(38)])
REC_STREAM = Matrix(GF(2), [int(i) for i in '{:0304b}'.format(int.from_bytes(rec_keystream,'big'))]).T

# Ta-da!
print(bitstate_to_bytes(MINREC_MAT.solve_right(REC_STREAM)))

b'Hello, this is a custom 36-byte key!'


It works, awesome. Now we can simply feed it the given encryption (instead of our own made one) to recover the flag.

Ta-da!

flag{th3s3_mumbl3_b33s_4r3_h4rd_t0_und3rst4nd_y0u_kn0w}
